ZETHUS-115S
Key Features
Description

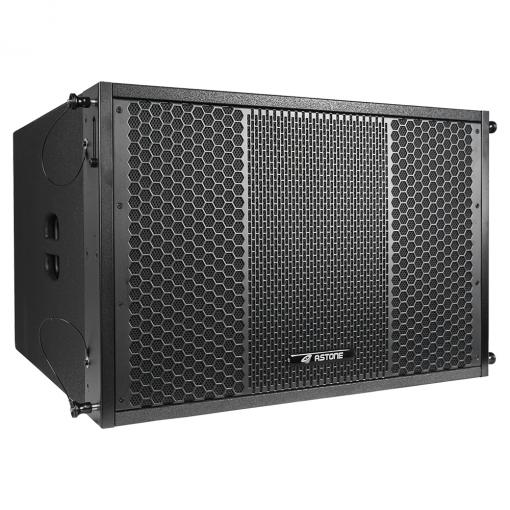

The Astone ZETHUS-115S is a 1000W line array passive subwoofer. It comes with one 15” woofers which offer solid and tight bass at earth shaking volume. It operates at 500W RMS and has a peak power output of 1000W and is wired at 4-Ohm. The frequency range can be driven down all the way to 35 Hz. This sub comes with two Speakon input connectors which make it easy to be connected with your PA system and is perfect for venues such as clubs, bars, restaurants, churches and schools etc. The Astone ZETHUS-115S sub has multiple flying points and provides flexible mounting or suspension options. When combined with ZETHUS series PA speaker (ZETHUS-205, ZETHUS-205V2, ZETHUS-205WV2, ZETHUS-208, ZETHUS-208WV2, ZETHUS-110, ZETHUS-110W, available separately), the system provides superior sound that seasoned engineers and musicians demand at touring grade. Astone selects top-quality plywood for ZETHUS series subwoofers to make sure you can expect stellar sound quality across every detail and reliable protection for your PA rigs. Its rugged construction with heavy-duty perforated metal grille holds up touring applications. It is an ideal solution for either mobile or fixed venue setups. Note: When stacking the ZETHUS-115S subwoofer above the ZETHUS 205 or 110 series PA speakers, an additional mounting fly bar adapter (ZETHUS-205V2AD, ZETHUS-205WV2AD, ZETHUS-110WAD, sold separately) is required to mount the line array speaker to the sub.
|
Model | ZETHUS-115S, ZETHUS-115SW |
Frequency Response | 38 Hz - 180 Hz |
Sensitivity | 100 dB (Passive) |
SPL Max | 128 dB |
Dispersion | -- |
Configuration | 15" passive line array subwoofer |
Transducer | LF: 1 x 15" |
Voice Coil | 4" |
Magnet | 100 oz |
Impedance | 4Ω Nominal |
Power Handling | 500 / 1000W |
Connectors | 2 x 4 Pin Speakon |
Cabinet Construction | High-grade 100% birch plywood |
Flying/Mounting Bracket Model# | ZETHUS-115SFF, integrated line array hardware |
Finish | Texture coating (RAL colors available) |
Grill & Rigging Component | Steel with anti-corrosion coat |
Amplifier | -- |
Input | -- |
Output | -- |
Control | -- |
Indicator | -- |
Voltage | -- |
Low Frequency Woofer Parts# | STLF-1504-4 |
