ZETHUS-IP118S
Key Features
Description

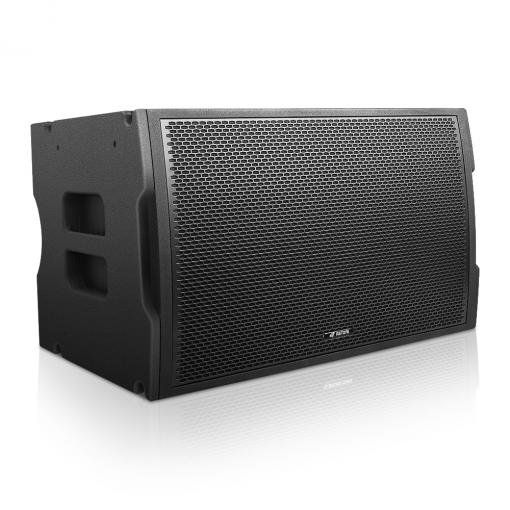

The ASTONE ZETHUS-IP118S is a professional grade weatherproof/waterproof line array passive subwoofer. It is housed in a waterproof fiber board enclosure with a very resistant, textured black paint. The heavy-duty waterproof grille comes with open-cell fibers and water repellent woven fabric backing. Together with the watertight connectors, it safeguards against bumps, drops, sprays and splashes.The ASTONE ZETHUS-IP118S sub has one 18“ aluminum frame woofer with 4.5” voice coil built-in and delivers rich and solid low-frequency reinforcement. The all-weather subwoofer comes with 1200W RMS, 2400W peak (8-ohm) extraordinary power handling capability. With heavy-duty aluminum extrusion rigging hardware, the subwoofer is easy to install both indoors and outdoors. It has multiple flying points and provides flexible mounting or suspension options. When combined with ZETHUS series line array PA speakers (ZETHUS-IP210, available separately), the line array system provides superior sound that seasoned engineers and musicians demand at touring grade. |
Specifications
| Model | ZETHUS-IP118S |
| Active / Passive | Passive |
| Frequency Range | 32 Hz - 180 Hz |
| Frequency Response | 35 Hz - 180 Hz |
| Sensitivity | 104 dB |
| SPL Max | 135 dB |
| Dispersion |
Omnidirectional |
| Configuration | 18" waterproof subwoofer line array |
| Transducer |
LF: 1 x 18" woofer with 4.5" voice coil (160oz magnet) HF: -- |
| Voice Coil | 4.5" |
| Magnet | 160 oz |
| Impedance | 8Ω |
| Power Handling |
1200W RMS / 2400W Peak |
| Enclosure Material | 3/4" waterproof complex fiber board |
| Mounting Hardware |
ZETHUS-IP210FF flying frame, compact line array hardware |
| Finish |
Waterproof texture coating |
| IP Grade |
IP54 |
| Grill & Rigging Component | Steel with anti-corrosion coat |
| Amplifier |
-- |
| Input | 4-Pin Speakon with waterproof cover |
| Output | 4-Pin Speakon with waterproof cover |
| Signal Processing |
-- |
| Control |
-- |
| Indicator |
-- |
| Voltage |
-- |
