ZETHUS-118S
Key Features
Description

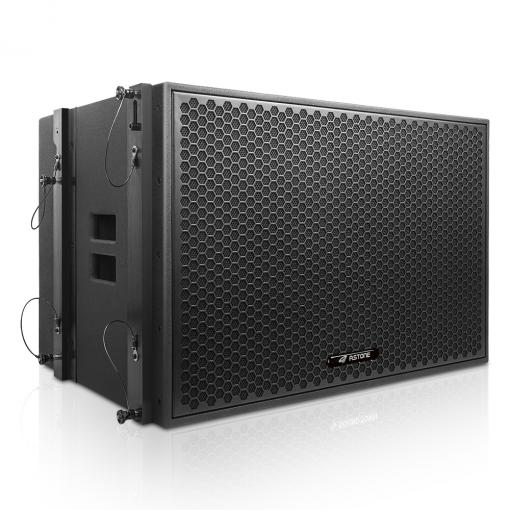

The ASTONE ZETHUS Series ZETHUS-118S is a 1600W line array passive subwoofer. It comes with one 18" woofer which offers solid and tight bass at earth shaking volume. It operates at 800W RMS and has a peak power output of 1600W and is wired at 8-Ohm. The frequency range can be driven down all the way to 32 Hz. This sub comes with two Speakon input connectors which make it easy to be connected with your PA system and is perfect for venues such as clubs, bars, restaurants, churches and schools etc.The ASTONE ZETHUS-118S sub has multiple flying points and provides flexible mounting or suspension options. When combined with ZETHUS series PA speaker (ZETHUS-210, available separately), the system provides superior sound that seasoned engineers and musicians demand at touring grade. ASTONE selects top-quality plywood for ZETHUS series subwoofers to make sure you can expect stellar sound quality across every detail and reliable protection for your PA rigs. Its rugged construction with heavy-duty perforated metal grille holds up touring applications. It is an ideal solution for either mobile or fixed venue setups. |
Specifications
| Model | ZETHUS-118S |
| Active / Passive | Passive |
| Frequency Range | 32 Hz - 180 Hz |
| Frequency Response | 35 Hz - 180 Hz |
| Sensitivity | 102 dB (Passive) |
| SPL Max | 131 dB |
| Dispersion | -- |
| Configuration | 18" passive line array subwoofer |
| Transducer | LF: 1 x 18" woofer |
| Voice Coil | 4.5" |
| Magnet | 173 oz |
| Impedance | 8Ω Nominal |
| Power Handling | 800W RMS / 1600W Peak |
| Cabinet Construction | High-grade 100% birch plywood |
| Mounting |
Compact line array aluminum hardware |
| Finish | Texture coating |
| Grill & Rigging Component | Steel with anti-corrosion coat |
| Amplifier | -- |
| Input | 4-Pin Speakon |
| Output | 4-Pin Speakon |
| Control | -- |
| Indicator | -- |
| Voltage | -- |
