ZETHUS-110

Key Features
  • A lightweight and compact line array speaker delivers robust sound quality with 10” woofer, 1.75” titanium compression driver and 300W RMS, 600W peak (8-Ohm) extraordinary power handling capability
  • When combined with ZETHUS-215S subwoofer (available separately), this system can deliver a tight and punchy low-end bass all the way to 35 Hz
  • Flexible mounting /suspension options with multiple flying points and additional flying frame ZETHUS-110FF (available separately)
  • Heavy-duty metal grille and rugged construction hold up to mobile applications
  • Ideal for small to medium-sized venues including clubs, bars, restaurants, churches and schools etc.
Description

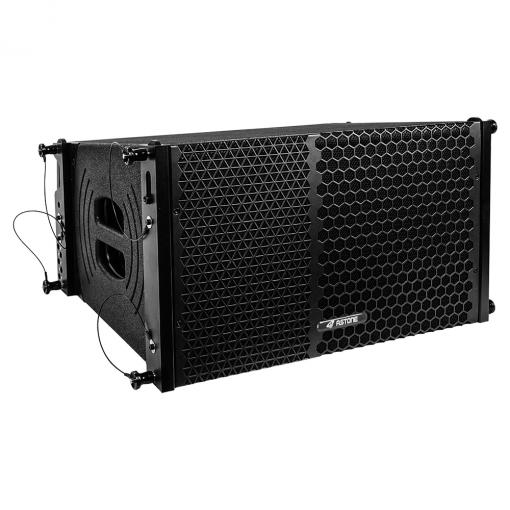

The ASTONE ZETHUS Series ZETHUS-110 is a lightweight and compact line array speaker system. It comes with one 10” woofer and one 1.75” titanium compression driver with 600W peak power handling capability. The full range speaker itself delivers a frequency range of 50 Hz to 19K Hz and when combined with the ASTONE ZETHUS-215S subwoofer (available separately), it can produce a frequency range all the way to 35 Hz. This speaker comes with two Speakon input connectors which make it easy to be connected with your PA system.

The ASTONE ZETHUS-110 array speaker has multiple flying points and provides flexible mounting or suspension options with separately available flying frame (ZETHUS-110FF). When combined with ZETHUS-215S subwoofer (available separately), it can deliver tight bass at earth shaking volume. Its rugged construction with heavy-duty perforated metal grille holds up touring applications.

Specifications

Model ZETHUS-110, ZETHUS-110W
Frequency Response 55 Hz - 20 kHz
Sensitivity 101 dB (Passive)
SPL Max 128 dB
Dispersion 90º x 20º (H x V)
Configuration 10" passive full-range line array loudspeaker
Transducer LF: 1 x 10", HF: 1 x 2" diaphragm
Voice Coil 2.5"
Magnet 50 oz
Impedance 8Ω Nominal
Power Handling 300W RMS / 600W Peak
Connectors 2 x 4 Pin Speakon
Cabinet Construction High-grade 100% birch plywood
Flying/Mounting Bracket Model# ZETHUS-115SFF, integrated line array hardware
Finish Texture coating (RAL colors available)
Grill & Rigging Component Steel with anti-corrosion coat
Amplifier --
Input --
Output --
Control --
Indicator --
Voltage --
High Frequency Driver Parts# STHF-5103
Low Frequency Woofer Parts# STLF-10Z

Series Products
