ZETHUS-205V2X4

Key Features

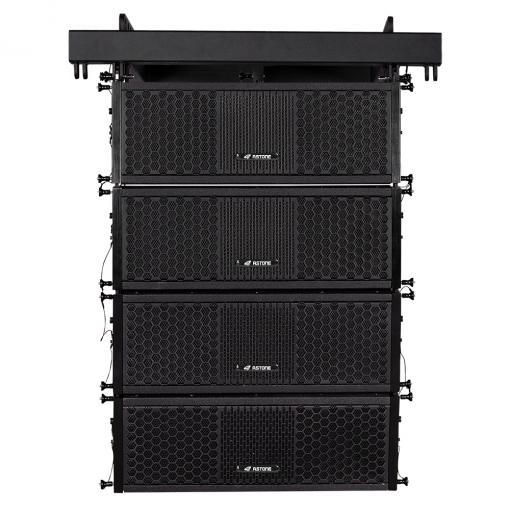

  • This speaker system includes 4 x ZETHUS-205V2 line array speakers (passive) and 1 x ZETHUS-205FF mounting frame
  • The ZETHUS-205V2 is a lightweight and compact line array speaker which delivers superior sound quality with two 5” woofers, one 1.5” titanium compression driver and 200W RMS, 400W peak (16-Ohm) extraordinary power handling capability
  • The high-quality plywood enclosure comes with heavy-duty metal grille and rugged construction
  • 4 line array speakers can be quickly stacked and secured with attached mounting points and heavy-duty metal handles on the rear panels. With 4 speakers packed together, they deliver accurate and immersive sound performance
  • With the mounting frame, the speaker system can be flown for optimum coverage. Ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired
Description

The ASTONE ZETHUS Series ZETHUS-205V2X4 line array speaker system includes:

The ZETHUS-205V2 is a lightweight and compact line array speaker which delivers superior sound quality with two 5” woofers, one 1.5” titanium compression driver and 200W RMS, 400W peak (16-Ohm) extraordinary power handling capability.

The line array speakers can be quickly stacked and secured with attached mounting points and heavy-duty metal handles on the rear panels. With 4 speakers packed together, they deliver accurate and immersive sound performance, ideal for small to medium-sized venues including clubs, bars, restaurants, churches and schools etc.

Specifications

Model ZETHUS-205V2
Frequency Response 70 Hz - 20 kHz
Sensitivity 99 dB (Passive)
SPL Max 125 dB
Dispersion 120º x 15º (H x V)
Configuration Compact dual 5" passive full-range line array loudspeaker
Transducer LF: 2 x 5", HF: 1 x 1.4" diaphragm
Voice Coil 1.5"
Magnet 25 oz
Impedance 16Ω Nominal
Power Handling 200 / 400W
Connectors 2 x 4 Pin Speakon
Cabinet Construction High-grade 100% birch plywood
Mounting Compact line array hardware / Optional U bracket
Finish Texture coating (RAL colors available)
Grill & Rigging Component Steel with anti-corrosion coat
Crossover Parts# XO-Z205
High Frequency Driver Parts# STHF-3403T
Low Frequency Woofer Parts# STLF-05Z
