ZETHUS-208BV2X4

Key Features
  • The ZETHUS-208BV2 is a lightweight and compact line array speaker which delivers superior sound quality with two 8” woofers, one 1.75” titanium compression driver and 350W RMS, 700W peak (16-Ohm) extraordinary power handling capability
  • The high-quality plywood enclosure comes with heavy-duty metal grille and rugged construction

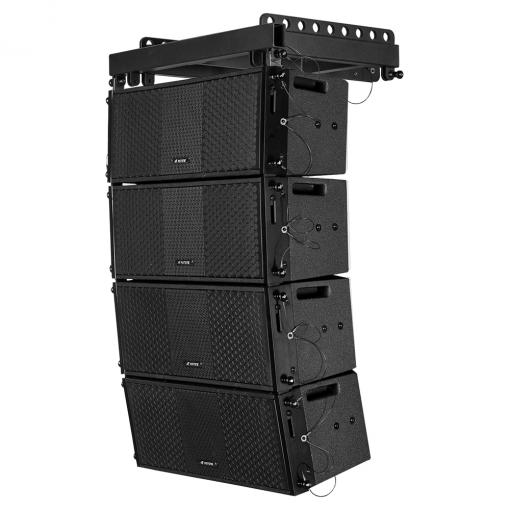

  • 4 line array speakers can be quickly stacked and secured with attached mounting points and heavy-duty metal handles on the rear panels. With 4 speakers packed together, they deliver accurate and immersive sound performance
  • With the mounting frame, the speaker system can be flown for optimum coverage. Ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired
Description

The ASTONE ZETHUS Series ZETHUS-208BV2X4 line array speaker system includes:

The ZETHUS-208BV2 is a lightweight and compact line array speaker which delivers superior sound quality with two 8” woofers, one 1.75” titanium compression driver and 350W RMS, 700W peak (16-Ohm) extraordinary power handling capability.

The line array speakers can be quickly stacked and secured with attached mounting points and heavy-duty metal handles on the rear panels. With 4 speakers packed together, they deliver accurate and immersive sound performance, ideal for medium to large-sized venues including clubs, bars, restaurants, churches and schools etc.

Specifications

Model ZETHUS-208BV2
Frequency Response 60 Hz - 20 kHz
Sensitivity 101 dB (Passive)
SPL Max 128 dB
Dispersion 90º x 15º (H x V)
Configuration Compact dual 8" passive full-range line array loudspeaker
Transducer LF: 2 x 8", HF: 1 x 1.75" diaphragm
Voice Coil 2"
Magnet 30 oz
Impedance 16Ω Nominal
Power Handling 350 / 700W
Connectors 2 x 4 Pin Speakon
Cabinet Construction High-grade 100% birch plywood
Mounting Compact line array hardware / Optional U bracket
Finish Texture coating (RAL colors available)
Grill & Rigging Component Steel with anti-corrosion coat
Crossover Parts# XO-Z208
High Frequency Driver Parts# STHF-4403T
Low Frequency Woofer Parts# STLF-08Z
