ZETHUS-115S208X4
Key Features
Description

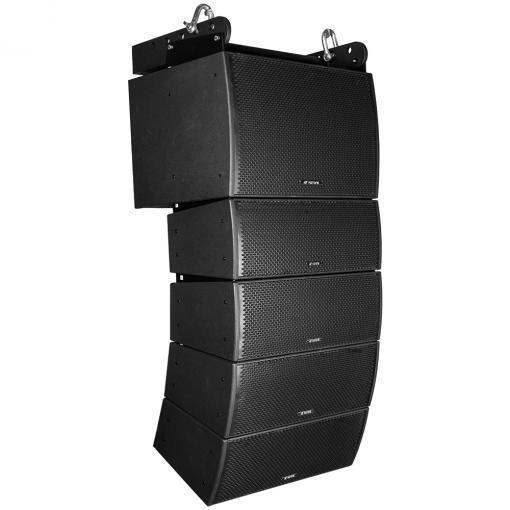

The ASTONE ZETHUS Series ZETHUS-115S208X4 line array speaker system includes:
The ZETHUS-115S comes with extraordinary 500W RMS, 1000W peak (4-ohm) power handling capability and delivers rich and solid low-frequency reinforcement, the ZETHUS-208 is a lightweight and compact passive line array speaker which delivers superior sound quality with two 8” woofers, one 1.75” titanium compression driver and 350W RMS, 700W peak (16-Ohm) power handling capability. Four ZETHUS-208 line array speakers can be quickly stacked and mounted to the ZETHUS-115S subwoofer and secured with attached mounting points and heavy-duty metal handles on the rear panels. Altogether they deliver accurate and immersive sound performance at earth shaking volume. With the mounting frame, the speaker system can be flown for optimum coverage. The line array speaker system is ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired. |
Specifications
| Model | ZETHUS-115S | ZETHUS-208BV2 (black), ZETHUS-208WV2 (white) |
| Frequency Response | 38 Hz - 180 Hz | 55 Hz ~ 20 kHz |
| Sensitivity | 100 dB (Passive) | 101 dB (Passive) |
| SPL Max | 128 dB | 128 dB |
| Dispersion | -- | 120º x 15º (H x V) |
| Configuration | 15" active line array subwoofer (1.1 channel) |
Compact dual 8" passive full-range line array loudspeaker |
| Transducer | LF: 1 x 15" | LF: 2 x 8", HF: 1 x 1.75" diaphragm |
| Voice Coil | 4" | 2" |
| Magnet | 100 oz | 30 oz |
| Impedance | 4Ω Nominal |
16Ω Nominal |
| Power Handling | 500 / 1000W | 350W RMS, 700W PEAK |
| Connectors | 2 x 4 Pin Speakon | 2 x 4 Pin Speakon |
| Cabinet Construction | High-grade 100% birch plywood | High-grade 100% birch plywood |
| Flying/Mounting Bracket Model# | ZETHUS-115SFF, integrated line array hardware |
ZETHUS-208FF or ZETHUS-115SFF, compact line array hardware |
| Finish | Texture coating (RAL colors available) | Texture coating |
| Grill & Rigging Component | Steel with anti-corrosion coat | Steel with anti-corrosion coat |
| Amplifier |
-- |
-- |
| Input |
-- |
-- |
| Output |
-- |
-- |
| Signal Processing |
-- |
-- |
| Control |
-- |
-- |
| Indicator |
-- |
-- |
| Voltage |
-- |
-- |
| Crossover Parts# | -- | XO-Z208 |
| High Frequency Driver Parts# | -- |
STHF-4403T |
| Low Frequency Woofer Parts# | STLF-1504-4 | STLF-08Z |
