ZETHUS-215S110X2

Key Features

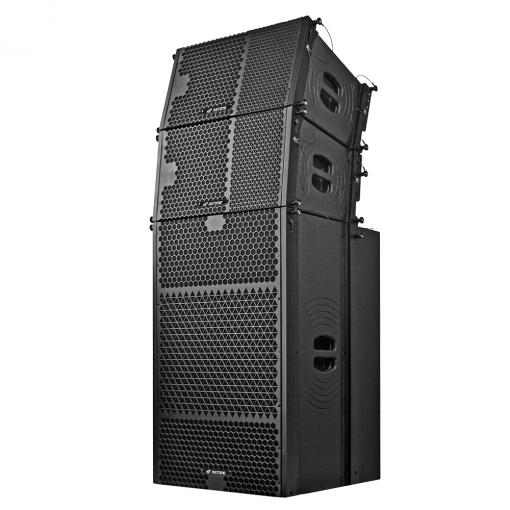

  • The line array speaker system includes 1 X ZETHUS-215S passive line array subwoofer and 2 X ZETHUS-110 passive line array speakers
  • The ZETHUS-215S is a 1600W passive subwoofer. It comes with two 15” woofers which offer solid and tight bass at earth shaking volume. It operates at 800W RMS and has a peak power output of 1600W and is wired at 4-Ohm. The frequency range can be driven down all the way to 35 Hz
  • The ZETHUS-110 is a lightweight and compact line array speaker. It comes with one 10” woofer and one 1.75” titanium compression driver with 600W peak power handling capability. The full range speaker itself delivers a frequency range of 50 Hz to 19K Hz
  • Two ZETHUS-110 line array speakers can be quickly stacked on top of the ZETHUS-215S subwoofer and secured with heavy-duty metal handles on the rear panels. Altogether they deliver accurate and immersive sound performance at earth shaking volume
  • This line array speaker set is ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired
Description

The ZETHUS Series ZETHUS-215S110X2 line array speaker system includes:

The ZETHUS-215S is a 1600W passive subwoofer. It comes with two 15” woofers which offer solid and tight bass at earth shaking volume. It operates at 800W RMS and has a peak power output of 1600W and is wired at 4-Ohm. The frequency range can be driven down all the way to 35 Hz. The ZETHUS-110 is a lightweight and compact line array speaker. It comes with one 10” woofer and one 1.75” titanium compression driver with 600W peak power handling capability. The full range speaker itself delivers a frequency range of 50 Hz to 19K Hz.

Two ZETHUS-110 line array speakers can be quickly stacked on top of the ZETHUS-215S subwoofer and secured with heavy-duty metal handles on the rear panels. Altogether they deliver accurate and immersive sound performance at earth shaking volume. This line array speaker set is ideal for a wide range of installation applications ranging from live entertainment, clubs to churches or other venues where a line array speaker system is desired.

Specifications

Model ZETHUS-215S ZETHUS-110
Active/Passive Passive Passive
Frequency Range 35 Hz - 350 Hz --
Frequency Response 38 Hz - 350 Hz
55 Hz - 20 kHz
Sensitivity 100 dB
101 dB (Passive)
SPL Max 129 dB
128 dB
Dispersion Omnidirectional
90º x 20º (H x V)
Configuration Dual 15" line array subwoofer
10" passive full-range line array loudspeaker
Transducer LF: 2 x 15" woofer, HF: --
LF: 1 x 10", HF: 1 x 2" diaphragm
Voice Coil --
2.5"
Magnet --
50 oz
Impedance
8Ω Nominal
Power Handling 800W RMS / 1600W Peak
300W RMS / 600W Peak
Enclosure Material High-grade 100% birch plywood High-grade 100% birch plywood
Mounting None, floor standing
Integrated line array hardware
Finish Texture coating Texture coating
Grill & Rigging Component Steel with anti-corrosion coat Steel with anti-corrosion coat
Amplifier -- --
Input 4-Pin Speakon 4-Pin Speakon
Output 4-Pin Speakon 4-Pin Speakon
Signal Processing -- --
Control -- --
Indicator -- --
Voltage -- --
High Frequency Driver Parts# -- STHF-5103
Low Frequency Woofer Parts# -- STLF-10Z
