ZETHUS-IP210X4

Key Features
  • The line array speaker system includes four 2 x 10“ waterproof passive line array speakers (ZETHUS-IP210) and one flying frame (ZETHUS-IP210FF)
  • The speaker is housed in a waterproof fiber board enclosure with a very resistant, textured black paint and has a weather-resistant cone built in. The heavy-duty waterproof grille comes with open-cell fibers and water repellent woven fabric backing. Together with the watertight connectors on the rear panel, it safeguards against bumps, drops, sprays and splashes
  • The compact line array speaker delivers superior sound quality with dual 10” woofers and one 3” titanium diaphragm neodymium compression driver and 550W RMS, 1100W peak (16-ohm) extraordinary power handling capability
  • Four ZETHUS-IP210 line array speakers can be stacked and secured with quick-release pins and safety handles. Each speaker’s angle can be adjusted from 0°~10° between adjacent cabinets to optimize coverage to the audience area
  • Its passive full-range and bi-amp capability enables it for either quick setup or professional Bi-amp setting. The speaker is ideal for outdoor sound reinforcement as well as fixed installations in venues such as stages, lounges, theaters, clubs, bars, churches, schools and more
Description

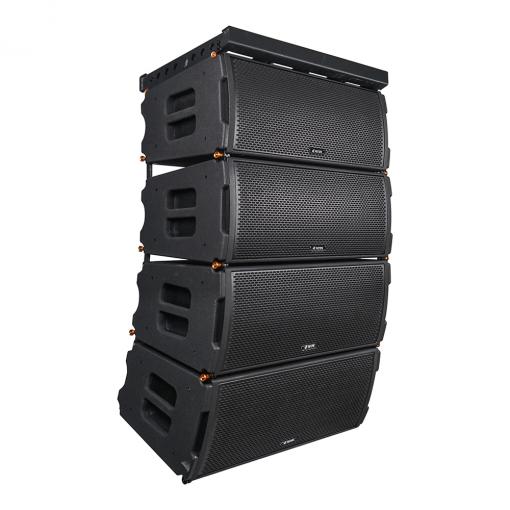

The ASTONE ZETHUS Series ZETHUS-IP210X4 line array speaker system includes:

  • (4) ZETHUS-IP210 2 x 10“ waterproof passive line array speakers
  • (1) ZETHUS-IP210FF flying frame

The ASTONE ZETHUS-IP210 is a professional-grade waterproof full range line array loudspeaker. The speaker is housed in a waterproof fiber board enclosure with a very resistant, textured black paint and has a weather-resistant cone built in. The heavy-duty waterproof grille comes with open-cell fibers and water repellent woven fabric backing. Together with the watertight connectors, it safeguards against bumps, drops, sprays and splashes.

The ZETHUS-IP210 comes with two customized 10" woofers and one 3" neodymium compression driver. It has 550W RMS, 1100W peak power handling capability at 16-Ohm. The built-in passive FULL RANGE / BI-AMP switch enables it for either quick setup (full range mode with internal cross-over) or professional Bi-amp setting by external processor.Four ZETHUS-IP210 line array speakers can be stacked and secured with quick-release pins and safety handles. Each speaker’s angle can be adjusted from 0°~10° between adjacent cabinets to optimize coverage to the audience area. Sound Town selects top-quality plywood for ZETHUS series to make sure you can expect stellar sound quality across every detail and reliable protection for your PA rigs. Its rugged construction with heavy-duty perforated metal grille holds up touring applications. It is an ideal solution for either mobile or fixed venue setups.

Specifications

Model ZETHUS-IP210
Active / Passive Passive
Frequency Range 50 Hz - 20 kHz
Frequency Response 55 Hz - 20 kHz
Sensitivity 106 dB
SPL Max 134 dB
Dispersion 120º x 15º (H x V)
Configuration Dual 10" waterproof full-range line array
Transducer LF: 2 x 10" woofer, HF: 1 x 3" diaphragm neodymium compression driver
Impedance Passive: 16Ω
Bi-amp: LF: 16Ω, HF: 8Ω
Power Handling 550W RMS / 1100W Peak
Enclosure Material 3/4" waterproof complex fiber board
Mounting Hardware ZETHUS-IP210FF flying frame, compact line array hardware
Finish Waterproof texture coating
IP Grade IP54
Grill & Rigging Component Steel with anti-corrosion coat
Amplifier --
Input 4-Pin Speakon with waterproof cover
Output 4-Pin Speakon with waterproof cover
Signal Processing --
Control --
Indicator --
Voltage --
